最多能节省资源
用水减少
肥皂减少
洗手时间节省
- 多款机型免费咨询
- 专为饮食业食品加工业设计

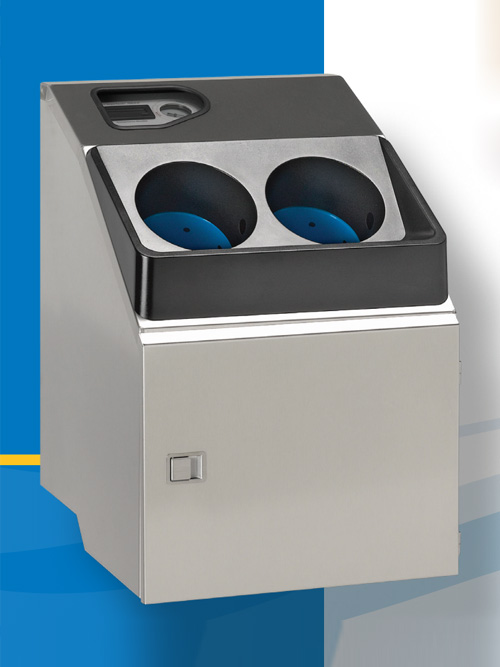

Dimensions
18 1/4" width x 19 5/8" depth x 25 1/2" height
Weight
62 lbs.
Shipping Weight
72 lbs.
Cycle Activation
Automatic via infrared photo-optical sensor
Handwash Compliance Monitor
Counts number of handwash cycles
Solutions Gauge
Indicates Normal/Empty/Blocked
Water Consumption
0.6 gallons at a 10-second cycle
Electrical
100-250 VAC 50/60 Hz, 300 watts
Plumbing Inlet
3/4" male garden hose, Minimum 4 GPM,
40-100 PSI, hot & cold lines
Drain
Standard 1 1/2" drain stub
"P" Trap to be supplied by facility
Solutions Storage
3 – One Gallon Containers
Solutions Compatibility
Solutions provided by Meritech
(Other solutions will void warranty)
18 1/4" width x 19 5/8" depth x 25 1/2" height
Weight
62 lbs.
Shipping Weight
72 lbs.
Cycle Activation
Automatic via infrared photo-optical sensor
Handwash Compliance Monitor
Counts number of handwash cycles
Solutions Gauge
Indicates Normal/Empty/Blocked
Water Consumption
0.6 gallons at a 10-second cycle
Electrical
100-250 VAC 50/60 Hz, 300 watts
Plumbing Inlet
3/4" male garden hose, Minimum 4 GPM,
40-100 PSI, hot & cold lines
Drain
Standard 1 1/2" drain stub
"P" Trap to be supplied by facility
Solutions Storage
3 – One Gallon Containers
Solutions Compatibility
Solutions provided by Meritech
(Other solutions will void warranty)

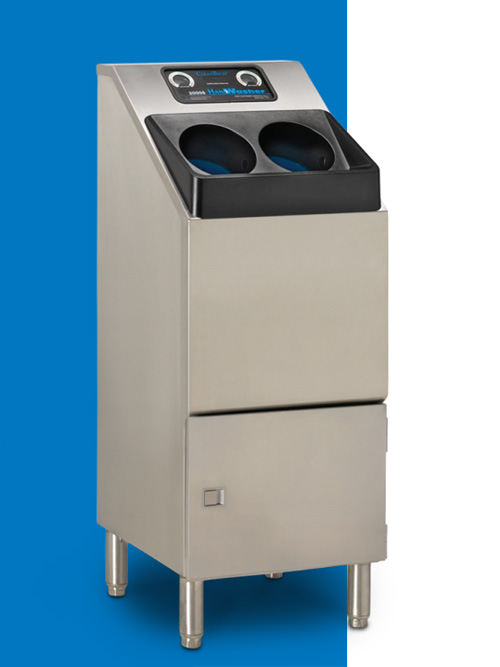

Dimensions
19" width x 21 1/2" depth x 48 1/2" height
Weight
98 lbs. (varies with options)
Shipping Weight
155 lbs. (varies with options)
Cycle Activation
Automatic via infrared photo-optical sensor
Handwash Compliance Monitor
Counts number of handwash cycles
Solutions Gauge
Indicates Normal/Empty/Blocked
Water Consumption
0.6 gallons per hand wash cycle
Self-Cleaning Feature
The handwashing system self-cleans 3x times
per day, (once per shift).
Electrical
System: 100-250 VAC 50/60 Hz, 300 watts
Optional Air Dryer: 120 VAC 50/60 Hz, 2000 watts
Plumbing Inlet
3/4" male garden hose, Minimum 4 GPM,
40-100 PSI, hot & cold lines
Drain
Standard 1 1/2" drain stub (regular wall drain)
"P" Trap to be supplied by facility.
Solutions Storage
2 – Gallon hand solutions containers
1 – Gallon Self-Clean container
Solutions Compatibility
Solutions provided or approved by Meritech
(Other solutions will void warranty)
Options
23"x23" Boot Dip Pan, with two ¾" male pipe stubs
for pan drainage
19" width x 21 1/2" depth x 48 1/2" height
Weight
98 lbs. (varies with options)
Shipping Weight
155 lbs. (varies with options)
Cycle Activation
Automatic via infrared photo-optical sensor
Handwash Compliance Monitor
Counts number of handwash cycles
Solutions Gauge
Indicates Normal/Empty/Blocked
Water Consumption
0.6 gallons per hand wash cycle
Self-Cleaning Feature
The handwashing system self-cleans 3x times
per day, (once per shift).
Electrical
System: 100-250 VAC 50/60 Hz, 300 watts
Optional Air Dryer: 120 VAC 50/60 Hz, 2000 watts
Plumbing Inlet
3/4" male garden hose, Minimum 4 GPM,
40-100 PSI, hot & cold lines
Drain
Standard 1 1/2" drain stub (regular wall drain)
"P" Trap to be supplied by facility.
Solutions Storage
2 – Gallon hand solutions containers
1 – Gallon Self-Clean container
Solutions Compatibility
Solutions provided or approved by Meritech
(Other solutions will void warranty)
Options
23"x23" Boot Dip Pan, with two ¾" male pipe stubs
for pan drainage

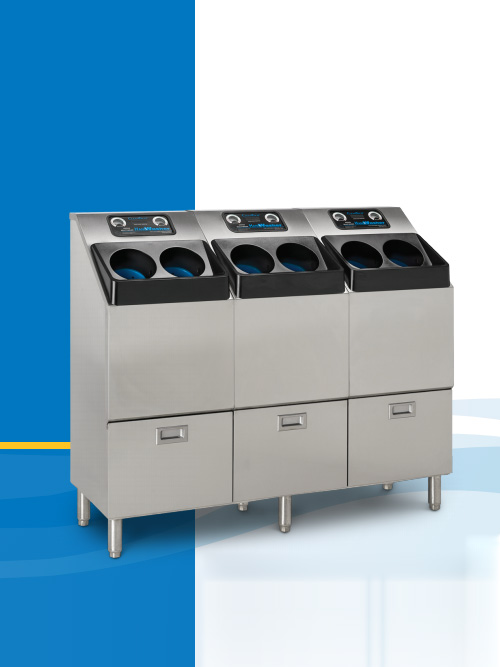

Dimensions
56" width x 21 1/2" depth x 48 1/2" height
Weight
294 lbs. (varies with options)
Shipping Weight
500 lbs. (varies with options)
Cycle Activation
Automatic via infrared photo-optical sensor
Handwash Compliance Monitor
Counts number of handwash cycles
Solutions Gauge
Indicates Normal/Empty/Blocked
Water Consumption
0.6 gallons at a 10-second cycle per station
Electrical
100-250 VAC 50/60 Hz, 300 watts per station
Plumbing Inlet
3/4" male garden hose, Minimum 12 GPM,
40-100 PSI, hot & cold lines.
Drain
1 1/2" male ID drain stub
"P" Trap to be supplied by facility.
Solutions Storage
2 – Gallon hand solutions containers in each bay
1 – Gallon Self-Clean container in each bay
Solutions Compatibility
Solutions provided by Meritech
(Other solutions will void warranty)
56" width x 21 1/2" depth x 48 1/2" height
Weight
294 lbs. (varies with options)
Shipping Weight
500 lbs. (varies with options)
Cycle Activation
Automatic via infrared photo-optical sensor
Handwash Compliance Monitor
Counts number of handwash cycles
Solutions Gauge
Indicates Normal/Empty/Blocked
Water Consumption
0.6 gallons at a 10-second cycle per station
Electrical
100-250 VAC 50/60 Hz, 300 watts per station
Plumbing Inlet
3/4" male garden hose, Minimum 12 GPM,
40-100 PSI, hot & cold lines.
Drain
1 1/2" male ID drain stub
"P" Trap to be supplied by facility.
Solutions Storage
2 – Gallon hand solutions containers in each bay
1 – Gallon Self-Clean container in each bay
Solutions Compatibility
Solutions provided by Meritech
(Other solutions will void warranty)
